Wi-Fi, Bluetooth and LoRaWAN range records: how short-range wireless technologies reached astonishing distances

Wi-Fi, Bluetooth and LoRaWAN are usually not mentioned in the same sentence when people talk about extreme wireless range. Wi-Fi is associated with home internet, offices and routers. Bluetooth is associated with headphones, smartwatches, keyboards and phones. LoRaWAN is mostly known in the IoT world, where small battery-powered sensors send tiny packets of data over long distances.

Yet all three technologies have produced remarkable range records.

Wi-Fi has been pushed to hundreds of kilometres in carefully engineered point-to-point links. Bluetooth, although designed for short-range personal devices, has been detected and exploited from more than a kilometre away under special conditions. LoRaWAN, built specifically for long-range low-power communication, has reached more than a thousand kilometres with only a few tiny data packets.

These records are not normal operating ranges. They are not what a home router, a pair of wireless earbuds or a basic IoT sensor will achieve in everyday use. They are demonstrations of what happens when radio physics, antennas, terrain, timing, modulation and engineering discipline all work in favour of distance.

Quick comparison

Why range records are misleading without context

Wireless range is never a single fixed number. It depends on several interacting factors:

• frequency,
• transmit power,
• antenna gain,
• receiver sensitivity,
• modulation,
• channel bandwidth,
• noise floor,
• terrain,
• line of sight,
• Fresnel zone clearance,
• protocol timing,
• legal power limits.

A manufacturer may advertise “up to 100 metres” or “up to 1 kilometre”, but that number usually assumes favourable conditions. In real buildings, walls, metal structures, human bodies, interference and poor antenna placement can reduce the practical range dramatically.

Range records are different. They are not casual use cases. They usually involve elevated sites, carefully aligned antennas, low-noise environments and sometimes rare propagation conditions.

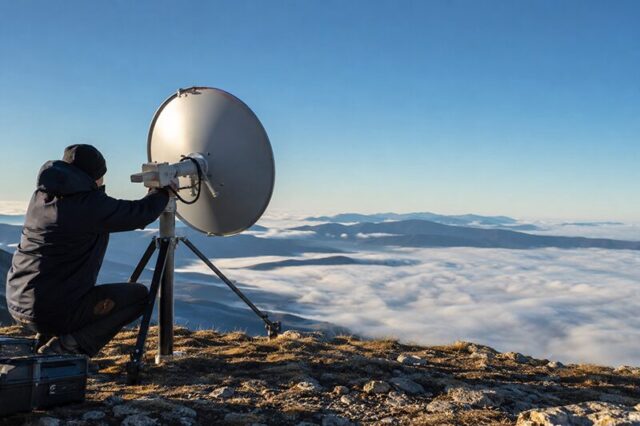

That is why a Wi-Fi link can reach hundreds of kilometres in a mountain-to-mountain experiment while a normal home router struggles through two concrete walls. The technology is the same family, but the radio environment is completely different.

Wi-Fi: from home networking to mountain-to-mountain radio links

Wi-Fi is based on the IEEE 802.11 family of standards. Its primary purpose is high-speed local networking. It was designed to connect laptops, phones, access points, cameras, printers, smart TVs and other devices over relatively short distances.

The common Wi-Fi bands are:

The famous Wi-Fi distance record of about 382 km was not achieved with a normal domestic router sitting on a desk. It was a carefully engineered long-distance 802.11 link between elevated locations in Venezuela. The connection reportedly delivered several megabits per second, which is particularly impressive because it was not merely signal detection. It was a usable broadband data link.

How Wi-Fi can reach hundreds of kilometres

A normal Wi-Fi router uses small internal or external antennas, usually designed to cover rooms in multiple directions. That is useful in a home, but poor for extreme distance. A long-distance Wi-Fi link works differently.

Instead of covering a whole room, the signal is focused into a narrow beam using high-gain directional antennas.

Typical Wi-Fi antenna types include:

A high-gain antenna does not create extra transmitter power. It concentrates the available energy into a narrower direction. It also improves reception by collecting more energy from the desired direction and rejecting more noise from other directions.

This is why antenna gain is central to long-range Wi-Fi. The radio module may not be very powerful, but the antenna system changes the link budget dramatically.

The role of line of sight

At 2.4 GHz or 5 GHz, long-distance communication needs line of sight. This does not only mean that the two antenna sites are visually visible. The Fresnel zone must also be mostly clear.

The Fresnel zone is the three-dimensional volume around the direct radio path where obstacles can cause diffraction, phase cancellation and signal loss. A hill, building, tree line or even the curvature of the Earth can affect the link even if the antennas appear to face each other.

At hundreds of kilometres, Earth curvature becomes a major problem. That is why extreme Wi-Fi records require mountain peaks, high towers or other elevated locations.

A 382 km Wi-Fi link is therefore closer to a microwave radio relay system than to normal home networking.

Wi-Fi power and legal limits

Wi-Fi transmit power is regulated. In many regions, especially in Europe, 2.4 GHz Wi-Fi is typically limited to about 100 mW EIRP. The exact limits vary by band and country. In the 5 GHz range, some sub-bands allow higher power, but may require DFS, TPC or indoor-only operation.

For distance records, the key figure is not only transmitter output power but EIRP: effective isotropic radiated power. EIRP combines transmitter power, cable loss and antenna gain.

A modest transmitter connected to a high-gain dish can create a much stronger signal in one direction than a higher-power device using a small omnidirectional antenna.

Why Wi-Fi is difficult over very long distances

Wi-Fi is a packet-based data system. It was not originally designed for hundreds of kilometres. At long distances, the time it takes for radio signals to travel between stations becomes relevant to the protocol.

Wi-Fi uses acknowledgements and timing windows. If the equipment expects a response too quickly, long-distance links may fail even if the signal itself is strong enough. For this reason, long-range Wi-Fi links often need special distance or ACK timing settings.

This is an important distinction: hearing a signal is one thing; maintaining a stable data link is another.

The Wi-Fi record is impressive because it was not just a weak RF trace. It was a functioning data connection.

Bluetooth: the short-range technology with surprising radio potential

Bluetooth is usually considered a short-range technology. It connects headphones, watches, keyboards, mice, car systems, health sensors and other personal devices.

Bluetooth operates in the 2.4 GHz ISM band, roughly between 2402 and 2480 MHz. It uses frequency hopping to reduce the impact of interference. Bluetooth Low Energy, or BLE, uses 40 channels, each 2 MHz wide.

Bluetooth was not designed to compete with Wi-Fi for speed or with LoRaWAN for distance. Its design priorities are:

• low power consumption,
• small antennas,
• low cost,
• simple pairing,
• robust short-range operation,
• compatibility with mobile devices.

Yet under special conditions, Bluetooth signals can be detected and used at far greater distances than most users expect.

Bluetooth power classes

Traditional Bluetooth devices are often described using power classes:

Most consumer Bluetooth products do not use large antennas or high power. A wireless earbud is designed to be tiny and energy efficient. An smartwatch antenna is heavily compromised by size, casing, battery layout and the human body.

That is why ordinary Bluetooth range is usually measured in metres, not kilometres.

Bluetooth Long Range

Bluetooth 5 introduced an important feature called LE Coded PHY, often referred to as Bluetooth Long Range. It improves range by using coding and redundancy rather than simply increasing transmit power.

The idea is simple: lower the effective data rate, add error correction and make the signal easier to decode at lower signal-to-noise ratios.

BLE physical modes include:

This is a recurring principle in radio engineering: if you reduce data rate and increase robustness, range improves.

LoRaWAN takes this idea much further.

The Bluetooth distance record

One widely known Bluetooth range record was about 1.7 km in a special bluesnarfing experiment. This was not a normal Bluetooth audio link. It was a security-oriented test using special equipment and a directional antenna.

That distinction matters.

A Bluetooth headset will not normally operate at 1.7 km. A phone in a pocket will not behave like a laboratory transmitter. A consumer Bluetooth device has a small antenna, limited power and a constantly changing environment.

The record shows something different: the Bluetooth radio signal itself can be accessed from much farther away if one side of the link uses a highly directional antenna, favourable geometry and suitable equipment.

Bluetooth antennas

Most Bluetooth antennas are extremely small. Common types include:

A Bluetooth range experiment is therefore more about antenna engineering than about normal consumer use. With a directional antenna, the receiving side becomes far more sensitive in one direction. That can transform a weak distant signal into something usable or at least detectable.

Why Bluetooth range is poor in daily use

Bluetooth often performs worse indoors than users expect. The reasons are practical:

• the human body absorbs and blocks 2.4 GHz signals;
• small antennas are inefficient;
• devices move and rotate;
• phones are often in pockets or bags;
• Wi-Fi and other 2.4 GHz systems create interference;
• walls and furniture cause multipath fading;
• battery-powered devices limit transmit power.

This is why a theoretical or experimental Bluetooth range says very little about earbuds in a real home.

LoRaWAN: designed for distance, not speed

LoRaWAN is fundamentally different from Wi-Fi and Bluetooth. It was designed for low-power wide-area communication. Its purpose is to let small battery-powered devices send tiny amounts of data over long distances.

A LoRaWAN sensor may send:

• temperature,
• humidity,
• battery voltage,
• GPS position,
• water meter reading,
• door sensor status,
• soil moisture,
• alarm state.

It does not send video. It does not carry voice. It does not provide internet browsing. Its strength is not throughput but link budget.

LoRa and LoRaWAN: not exactly the same

The terms LoRa and LoRaWAN are often used together, but they are not identical.

LoRa is the physical radio modulation. It uses chirp spread spectrum modulation, which allows signals to be decoded at very low signal-to-noise ratios.

LoRaWAN is the network protocol built on top of LoRa. It defines how devices join networks, how gateways forward packets, how channels are used, how messages are encrypted and how data reaches application servers.

A simple analogy:

LoRa is the radio waveform.

LoRaWAN is the network system that organizes communication.

LoRaWAN frequencies

LoRaWAN uses different frequency bands depending on region:

In Europe, LoRaWAN devices commonly operate around 868 MHz. At this frequency, the wavelength is about 34.5 cm, and a quarter-wave antenna is roughly 8.6 cm long.

That makes practical antennas relatively small but still efficient.

LoRaWAN power

European LoRaWAN devices commonly operate around +14 dBm to +16 dBm EIRP, roughly 25 to 40 mW. That is not much power. A handheld VHF radio, a Wi-Fi access point or even some Bluetooth Class 1 devices may use comparable or greater power.

LoRaWAN achieves long range by other means:

• narrow bandwidth,
• excellent receiver sensitivity,
• spreading factor,
• robust modulation,
• low data rate,
• high link budget,
• elevated gateways,
• efficient antennas.

This is why LoRaWAN can outperform much faster technologies in distance.

LoRaWAN antennas

Typical LoRaWAN antennas include:

Gateway antenna placement is often more important than node power. A LoRaWAN gateway mounted indoors near a window may provide limited coverage. The same gateway on a tower, roof or hilltop with a good antenna can cover many kilometres.

The 1336 km LoRaWAN record

The most spectacular LoRaWAN range record is about 1336 km. It involved LoRaWAN tracker messages sent from the area near Portugal and received by a gateway in the Canary Islands.

Only a few packets were received. That is essential context. This was not a continuous connection, not a broadband link and not a reliable everyday range. It was a rare and impressive reception of tiny IoT packets over an enormous distance.

The likely factors included:

• sea path propagation,
• low obstruction,
• favourable atmospheric conditions,
• a well-placed receiving gateway,
• low noise,
• suitable spreading factor,
• small data payload,
• high receiver sensitivity.

The sea path is especially interesting. Over water, UHF and sub-GHz signals can sometimes travel unusually well. Tropospheric ducting or other atmospheric effects may allow radio signals to bend or travel farther than normal line-of-sight calculations would suggest.

Spreading factor: the secret weapon of LoRa

LoRa uses spreading factors, commonly from SF7 to SF12. The spreading factor affects range, data rate and airtime.

At SF12, LoRa becomes extremely slow, but the receiver can decode much weaker signals. This is excellent for range but poor for network capacity. A long airtime packet occupies the channel longer and increases the chance of collisions.

This is why LoRaWAN networks must balance range and airtime. Maximum spreading factor is not always desirable in normal deployments.

Why LoRaWAN can beat Wi-Fi in distance

Wi-Fi needs a relatively strong signal because it carries high-speed data. It uses wider channels and more complex modulation. This gives high throughput but requires better signal quality.

LoRaWAN carries tiny packets at very low speed. It can operate with much weaker signals because it does not try to move large amounts of data.

The trade-off is severe but useful:

Wi-Fi gives speed.

LoRaWAN gives range.

Bluetooth gives low-power personal connectivity.

Each technology is optimized for a different problem.

Frequency and propagation differences

Frequency has a major effect on range.

Lower frequencies generally travel better around obstacles and suffer less free-space path loss. That helps LoRaWAN. However, frequency alone is not the whole story. Modulation, bandwidth, antenna height and receiver sensitivity matter just as much.

Antenna height: the underrated factor

Antenna height is one of the simplest ways to improve range.

For Wi-Fi, height helps create line of sight and clear the Fresnel zone.

For Bluetooth, height can reduce body blocking and ground absorption, although most Bluetooth devices are not designed for elevated fixed installation.

For LoRaWAN, gateway height can transform coverage. A gateway placed on a hilltop may hear sensors many tens of kilometres away. The same gateway in a basement may hear almost nothing.

This is why LoRaWAN community networks often value good gateway locations more than expensive end devices.

Receiver sensitivity

Receiver sensitivity is the minimum signal level a receiver can decode. It is usually expressed in dBm. More negative numbers mean better sensitivity.

A rough conceptual comparison:

Wi-Fi may work at high speed when the signal is strong, then fall back to lower data rates as the signal weakens. Eventually the link drops.

LoRaWAN starts from the assumption that the signal may be weak. It uses low data rates and robust modulation from the beginning.

Bandwidth and noise

Thermal noise increases with bandwidth. A wider channel collects more noise. Wi-Fi channels may be 20, 40, 80 or even 160 MHz wide. LoRaWAN channels are much narrower, commonly 125 kHz in many configurations.

That difference is huge.

A narrowband or spread-spectrum low-data-rate system can decode signals that would be unusable for broadband communication. This is one reason why a LoRaWAN packet can travel extremely far while Wi-Fi needs much better signal quality.

What the records really prove

The Wi-Fi record proves that 802.11 equipment, when used as a carefully engineered point-to-point microwave link, can provide broadband connectivity across extraordinary distances.

The Bluetooth record proves that short-range consumer radio signals may still be detectable or exploitable far beyond normal operating range when directional antennas and special methods are used.

The LoRaWAN record proves that tiny low-power IoT packets can travel astonishing distances when the modulation, data rate, antenna placement and propagation conditions align.

None of these records means that normal products will perform like this in normal environments.

Everyday range expectations

A realistic everyday comparison looks very different:

The difference between record and reality is not failure. It is simply radio engineering.

Why marketing range claims should be treated carefully

Wireless products often advertise impressive range figures. These numbers may be technically true under ideal conditions, but they rarely reflect difficult real-world environments.

A Wi-Fi router rated for high speed may perform poorly through concrete walls.

A Bluetooth device advertised for long range may only achieve it outdoors with no obstructions.

A LoRaWAN module may reach many kilometres from a hilltop but only a few hundred metres inside a metal cabinet.

The important questions are:

• What frequency does it use?
• What is the legal transmit power?
• What antenna is included?
• Is the antenna external or internal?
• What data rate is used?
• Is there line of sight?
• Is the environment urban, rural, indoor or maritime?
• Is the range one-way reception or stable two-way communication?

Without these details, a range figure is mostly marketing.

Wi-Fi record lessons

The Wi-Fi record teaches several practical lessons.

First, antenna choice matters enormously. A cheap router with a poor antenna cannot compete with a properly aligned outdoor directional system.

Second, line of sight is critical. Even powerful equipment cannot compensate well for blocked Fresnel zones.

Third, long-distance Wi-Fi is more like microwave engineering than home networking.

Fourth, protocol timing matters. A radio signal may be strong enough, but the data link may still fail if timing parameters are not suitable.

For rural internet, emergency links, temporary networks and remote sites, long-distance Wi-Fi can still be highly relevant.

Bluetooth record lessons

Bluetooth’s record is less useful for normal range planning, but very important for security awareness.

Many people assume Bluetooth is safe because it is “short range”. That assumption is weak. Under special conditions, Bluetooth devices may be accessible from far beyond normal user expectations.

This matters for:

• older vulnerable phones,
• insecure pairing modes,
• discoverable devices,
• poorly designed IoT products,
• industrial Bluetooth sensors,
• public environments.

Modern Bluetooth security is far better than early implementations, but range-based assumptions should not be the main security model.

LoRaWAN record lessons

The LoRaWAN record is the most relevant for IoT design.

It shows that very low power can go very far if the data payload is small and the system is optimized for sensitivity rather than speed.

For practical deployments, the lesson is not to expect 1336 km. The lesson is to design intelligently:

• place gateways high,
• use proper outdoor antennas,
• reduce cable losses,
• avoid bad enclosures,
• choose spreading factors carefully,
• keep payloads small,
• understand duty-cycle rules,
• measure RSSI and SNR in the field.

A well-designed LoRaWAN network can outperform expectations dramatically.

Which technology is most impressive?

It depends on what you value.

Wi-Fi is the most impressive if you care about real data throughput. Hundreds of kilometres with megabit-class connectivity is a serious engineering achievement.

Bluetooth is the most surprising because it was never meant for such distances. Its record is a reminder that “short range” is not a physical wall.

LoRaWAN is the most spectacular in pure distance terms. More than a thousand kilometres with tiny low-power packets is remarkable, even if only a few packets were received.

Best hobby experiments

A safe and legal Wi-Fi experiment would be a point-to-point outdoor bridge between two visible locations. With proper 5 GHz outdoor CPE units, even a few kilometres can be very educational. You can measure signal level, noise floor, throughput, latency and weather effects.

A Bluetooth experiment could use BLE beacons and a phone or SDR-compatible scanner setup to compare RSSI at different distances. Testing body blocking, antenna orientation and indoor reflections is very instructive.

A LoRaWAN experiment is perhaps the most rewarding. A small LoRa node, a proper 868 MHz antenna and access to a nearby gateway can produce surprising results. Testing SF7 to SF12, payload length, antenna height and terrain gives a clear view of how low-power radio behaves.

Wi-Fi, Bluetooth and LoRaWAN occupy different parts of the wireless world.

Wi-Fi is fast and bandwidth-hungry.

Bluetooth is compact, low-power and personal.

LoRaWAN is slow, efficient and long-range.

Their records are not directly comparable in a consumer-product sense, but they are fascinating as radio engineering examples.

The 382 km Wi-Fi link shows what happens when a local networking standard is turned into a carefully aligned microwave bridge.

The 1.7 km Bluetooth experiment shows that even personal-area radio can travel much farther than expected with special antennas and conditions.

The 1336 km LoRaWAN reception shows the extraordinary power of low data rate, high sensitivity and favourable propagation.

The deeper lesson is simple: wireless range is not magic and it is not defined by the product box. It is the result of link budget, antennas, frequency, noise, modulation, terrain and engineering discipline.

---

Image(s) used in this article are either AI-generated or sourced from royalty-free platforms like Pixabay or Pexels.

This article may contain affiliate links. If you purchase through these links, we may earn a commission at no extra cost to you.
