Icom IC-7300MK2 Review: Is The New SDR Transceiver Worth It?

What changed since the launch?

The Icom IC-7300MK2 is no longer just a newly announced SDR transceiver. After the first wave of excitement, early user feedback, pricing information and real-world comparisons have made its position clearer. It is not a radical reinvention of the original IC-7300, but it is a meaningful modernization of one of the most influential HF radios of the last decade.

The biggest question is not whether the IC-7300MK2 is better than the original IC-7300. On paper, it clearly is. The MK2 improves receiver and transmitter performance while adding modern interfaces such as HDMI output, USB-C, Ethernet, a dedicated RX antenna connector and a built-in CW decoder.

The more important question is whether these upgrades matter enough for real operators. For a new buyer, the IC-7300MK2 is one of the most attractive mid-range SDR transceivers now available. For an existing IC-7300 owner, the upgrade depends heavily on operating style. The MK2 makes the most sense if you need better crowded-band performance, external display support, direct remote operation, USB-C convenience or a separate receive antenna input.

The IC-7300 legacy

When Icom introduced the original IC-7300 in 2016, it changed the expectations of the HF transceiver market. Before the IC-7300, RF direct sampling SDR technology was often associated with higher-end equipment, external SDR receivers or specialist setups. The IC-7300 brought that concept into a compact, relatively affordable, mass-market desktop transceiver.

Its success was not based on one specification alone. The IC-7300 combined several things that amateur radio operators wanted at the same time: a real-time spectrum scope, a waterfall display, a touch screen, strong receiver performance, USB audio, compact size and straightforward operation. For many hams, it became the first SDR radio that felt familiar rather than experimental.

The original IC-7300 also became unusually influential because it appealed to several groups at once. New HF operators liked its simplicity. Digital-mode users liked its easy USB setup. DXers liked the spectrum scope and filtering. Portable operators liked the size. Experienced operators liked the price-to-performance ratio.

That is why replacing or updating it was always going to be difficult. Icom could not simply change everything. The original formula worked too well. The IC-7300MK2 therefore keeps the same basic idea, but updates the parts that had started to feel dated.

Why a new generation was needed

The original IC-7300 remains a good radio. It did not suddenly become obsolete because the MK2 appeared. In many shacks, it will continue to handle SSB, CW, FT8, FT4, RTTY and casual DX work perfectly well.

However, the amateur radio environment has changed since 2016. Operators now expect more from a mid-range transceiver. Crowded contest bands place more pressure on receiver dynamic range. Digital modes have made clean audio and stable computer integration more important. Remote operation is no longer a niche feature. External displays, Ethernet, USB-C and improved workflow are now normal expectations in modern electronic equipment.

At the same time, competition increased. Yaesu, Kenwood and Icom’s own higher-end models raised expectations. Radios such as the Yaesu FT-DX10, Yaesu FT-710, Icom IC-7610 and Kenwood TS-890 created a market where receiver performance, phase noise, DSP behavior and display usability were heavily compared.

The IC-7300MK2 answers that environment. It does not try to become a flagship. It tries to keep the original IC-7300 concept relevant for the next decade.

What the IC-7300MK2 improves

The IC-7300MK2 improves the original design in several important areas. The most visible upgrades are connectivity and usability features, but the more important technical improvements are in receiver and transmitter performance.

Key upgrades include:

• improved RMDR compared with the original IC-7300,
• improved transmit phase noise,
• HDMI output for an external display,
• USB-C instead of older USB-B,
• dual COM ports and audio over USB,
• Ethernet port for direct remote operation,
• dedicated receive antenna connector,
• built-in CW decoder,
• lower receive standby current,
• lower heat generation,
• 70 MHz support in European versions.

The result is a radio that feels familiar but more complete. It does not abandon the IC-7300 operating style. It modernizes it.

Receiver performance: RMDR and crowded bands

One of the most important specifications in modern HF receivers is RMDR, or Reciprocal Mixing Dynamic Range. RMDR describes how well a receiver can handle a weak signal near a strong signal without the strong signal’s phase noise masking the weak one.

In real operation, this matters most on crowded bands. During contests, DXpeditions, pileups or busy evenings on 40 and 20 meters, strong nearby signals can make weak signals harder to hear. A better RMDR figure gives the receiver more usable headroom.

The original IC-7300 was already good for its class, but the MK2 improves this area. This does not mean every operator will hear a dramatic difference every day. If you mostly operate casual SSB on quiet bands, the improvement may be subtle. If you operate CW contests, DX pileups, low-band DX or crowded digital-mode segments, the improvement is more relevant.

The MK2 is not simply about hearing stronger signals. It is about maintaining clarity when the band is busy.

Transmit phase noise and cleaner signals

Transmit phase noise is another important improvement. Cleaner transmit phase noise means the radio produces less unwanted energy close to the carrier. In practical amateur radio terms, this is better for neighboring operators, better for contest environments and better for high-density band conditions.

Many operators focus only on receive performance, but transmit cleanliness is part of good station behavior. A radio that receives well but transmits a noisy signal is not ideal. The MK2’s improvement helps make the radio more competitive in modern, crowded operating conditions.

This is especially relevant for operators using amplifiers or working in contests. The cleaner the exciter, the better the entire transmit chain can behave.

HDMI output: more useful than it sounds

One of the most visible new features is HDMI output. At first glance, this may look like a convenience feature rather than a core radio improvement. In practice, it can change how the radio feels in the shack.

The IC-7300’s built-in 4.3-inch display was excellent for its time, but modern operators often use multiple monitors, logging software, cluster windows, WSJT-X, SDR displays and remote-control screens. Being able to place the spectrum scope and waterfall on a larger external display makes band activity easier to monitor.

For contesters and DXers, this is not only cosmetic. A larger display can make signal hunting faster. It can make weak traces easier to see. It can reduce eye strain during long operating sessions. It can also make the radio more comfortable for operators whose shack layout places the radio below eye level.

HDMI does not improve the receiver directly. It improves the way the operator interacts with the receiver.

USB-C and modern computer integration

The move from USB-B to USB-C is another practical modernization. The original IC-7300’s USB-B connection worked well, but USB-C is now the normal connector on modern computers, laptops and accessories.

The IC-7300MK2 supports audio and control over USB, and its dual COM-port capability is useful for digital modes, CAT control and PTT workflows. For operators using WSJT-X, JTDX, Fldigi, logging software or contest software, simpler connectivity reduces frustration.

A good digital-mode setup should not require a pile of adapters, external sound cards or unreliable workarounds. One of the original IC-7300’s strengths was its easy USB audio interface. The MK2 continues that idea with a more modern connector and improved flexibility.

This makes the radio especially attractive for FT8, FT4, WSPR and other computer-based operation.

Ethernet and remote operation

The Ethernet port is one of the most important practical additions. Remote operation has become normal for many operators. Some want to operate from another room. Some want to access the shack while traveling. Others want a cleaner local setup without leaving a PC directly connected to the radio at all times.

The IC-7300MK2’s direct network capability makes it easier to integrate into a modern station. For operators using remote-control software, logging tools or networked shack environments, Ethernet is much more than a convenience port.

For operators who never use remote access, Ethernet may not matter much. For others, it may be one of the strongest reasons to choose the MK2 over a discounted original IC-7300.

Dedicated receive antenna input

The dedicated receive antenna connector is a major upgrade for more serious HF operators. The original IC-7300 did not have a dedicated receive antenna input, which limited its flexibility for low-band DXing and noise management.

A separate RX antenna input allows operators to use antennas optimized for receiving rather than transmitting. This is especially useful on 160 meters, 80 meters and 40 meters, where local noise and directional receiving can make a major difference.

Typical receive antennas include:

• Beverage antennas,
• magnetic loops,
• active receive loops,
• K9AY-style arrays,
• receive-only verticals,
• mini-whip antennas,
• phased receiving systems.

For many suburban and urban operators, local noise is a bigger limitation than transmitter power. A dedicated RX antenna input can make the radio more useful in those conditions.

This feature alone may justify the MK2 for low-band DXers.

Built-in CW decoder

The built-in CW decoder is a useful addition, but it should be understood correctly. It is not a replacement for learning Morse code properly, and it will not decode every weak or poorly sent signal perfectly.

However, it can help in several situations. It can assist operators who are learning CW. It can help identify callsigns in moderate conditions. It can provide support during noisy reception. It can also make casual CW monitoring more accessible.

Experienced CW operators will still rely primarily on their ears. Human listening remains better in many difficult real-world conditions, especially with QRM, QRN, unusual spacing or weak signals. But as a built-in helper, the decoder adds value.

Lower power consumption and heat

Icom also improved power consumption and thermal behavior. Reduced receive standby current and lower heat generation are especially useful for portable, field and long-duration operation.

This is not a glamorous feature, but it matters in practice. A radio that runs cooler is more comfortable during long contests, digital-mode operation or warm shack conditions. Lower current draw also matters for battery operation, field days, portable stations and emergency communication setups.

The original IC-7300 was already compact and portable enough for many operators. The MK2 becomes more attractive for temporary installations because it combines compact size, modern connectivity and improved efficiency.

70 MHz support in Europe

The European version of the IC-7300MK2 includes 70 MHz coverage. The 4-meter band is not available everywhere, but where it is permitted, it is an interesting experimental band. It sits between 6 meters and 2 meters and offers unique propagation possibilities, especially during sporadic-E openings.

For European operators interested in 70 MHz, this adds extra value. For operators outside regions where 70 MHz is allowed or supported, it is less relevant.

IC-7300MK2 vs IC-7300: is the upgrade worth it?

The most important buying question is whether existing IC-7300 owners should upgrade.

The answer is: not automatically.

If you already own an IC-7300 and use it mainly for casual SSB, FT8, local nets, moderate DXing or general HF operation, the original radio remains highly capable. You may not gain enough from the MK2 to justify the cost of replacing a working radio.

However, the MK2 becomes more attractive if you need specific improvements:

• better performance on crowded bands,
• cleaner transmit phase noise,
• HDMI output,
• Ethernet-based remote operation,
• USB-C convenience,
• dedicated receive antenna input,
• built-in CW decoder,
• lower heat generation,
• improved long-term station integration.

For a new buyer, the equation is different. If the price difference between a discounted IC-7300 and the IC-7300MK2 is modest, the MK2 is the more future-proof choice. If the original IC-7300 is heavily discounted, it may still be the better value for budget-focused operators.

Who should upgrade from the original IC-7300?

The upgrade makes the most sense for:

• contest operators,
• low-band DXers,
• operators using separate receive antennas,
• remote-station users,
• digital-mode users wanting modern USB-C workflow,
• operators who want an external display,
• users building a long-term modern shack,
• European operators interested in 70 MHz.

For these operators, the MK2 is not just a cosmetic update. It solves real limitations of the original radio.

The upgrade makes less sense for:

• casual operators already happy with the IC-7300,
• operators who never use remote control,
• users who do not need HDMI or RX antenna input,
• budget-conscious buyers,
• portable users who already have a suitable lightweight rig,
• operators who mainly use the radio for FT8 at modest power.

In those cases, keeping the original IC-7300 may be more rational.

IC-7300MK2 vs Yaesu FT-DX10

The Yaesu FT-DX10 is one of the most important competitors to the IC-7300MK2. It has a strong reputation for receiver performance and is often considered one of the best-performing radios in its class.

The FT-DX10 may still appeal more to operators who prioritize raw receiver performance, roofing-filter-style architecture, contest-grade behavior and strong DSP capability. The IC-7300MK2 answers with a different balance. It offers familiar Icom usability, HDMI output, USB-C, Ethernet, a dedicated RX antenna connector and a very straightforward operating experience.

For many operators, that combination may be more important than chasing the last few dB of receiver performance.

The choice is therefore not simple.

Choose the FT-DX10 if receiver performance is the absolute priority and you like Yaesu’s operating logic.

Choose the IC-7300MK2 if you want a more modernized IC-7300-style experience with excellent usability, external display support, direct networking and clean integration.

IC-7300MK2 vs Yaesu FT-710

The Yaesu FT-710 is another serious competitor, especially for operators looking for strong value in the mid-range SDR market. It is generally positioned as a compact, modern SDR transceiver with strong receiver performance and a lower price point than some higher-end options.

Against the FT-710, the IC-7300MK2’s strengths are the Icom interface, external HDMI output, Ethernet connectivity, RX antenna input and the continuity of the IC-7300 operating concept. The FT-710 may appeal strongly to operators who want maximum performance per dollar and are comfortable with Yaesu’s menu and control system.

For a first HF radio, both are credible choices. The IC-7300MK2 may be easier for many users to learn quickly, especially if they already know Icom radios. The FT-710 may be attractive where price is the primary constraint.

IC-7300MK2 vs Kenwood TS-890

The Kenwood TS-890 is not a direct price competitor in the same way. It is a higher-end radio, larger and more expensive, with a strong reputation for receiver performance, audio quality and premium operating feel.

The IC-7300MK2 does not try to replace the TS-890. Instead, it offers a more compact and affordable route to strong SDR performance with modern connectivity. The Kenwood remains a more serious high-end shack radio, while the Icom is a more accessible mid-range transceiver.

For operators comparing them, the real question is budget and station ambition. The TS-890 is for those who want a more premium main station radio. The IC-7300MK2 is for those who want a compact modern SDR with excellent practical features at a lower cost.

Comparison table

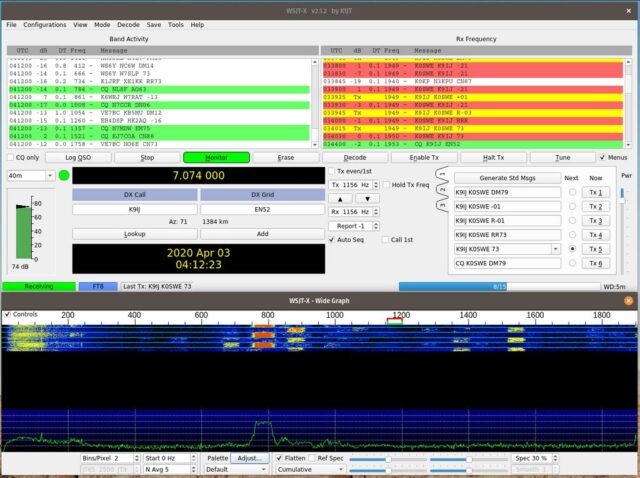

IC-7300MK2 for digital modes

The IC-7300MK2 is very well suited for digital modes. FT8, FT4, WSPR, JS8Call, RTTY and other sound-card-based modes benefit from clean USB audio, stable CAT control and simple computer integration.

The move to USB-C makes setup more convenient with modern computers. Dual COM-port functionality helps separate CAT control and related serial functions. Operators using WSJT-X or JTDX should be able to build a clean station with fewer adapters than older setups required.

Digital-mode operation also benefits from the radio’s improved receive and transmit behavior. Weak-signal modes depend on stable, clean signals and low noise. The original IC-7300 was already popular for FT8. The MK2 continues that role with better modern integration.

For many operators, this may be the main everyday use case.

IC-7300MK2 for contesting

The IC-7300MK2 is not a full contest flagship, but it is much more serious than an entry-level radio. Improved RMDR, lower phase noise, HDMI output and external display support all matter in contest environments.

The radio is especially attractive for operators who want a compact contest-capable station without moving into the price range of an IC-7610, TS-890 or higher-end transceiver.

The HDMI output is useful for visual band awareness. Better crowded-band behavior helps during pileups. Ethernet support can simplify station integration. The RX antenna input is valuable for low-band contesting.

That said, serious multi-radio contest stations may still prefer radios with dual receivers, more advanced filtering architecture or higher-end contest ergonomics. The MK2 is strong, but it is not intended to replace every higher-class contest radio.

IC-7300MK2 for DXing

For DXing, the IC-7300MK2 offers several meaningful improvements. The better receiver performance helps in crowded conditions. The improved phase noise helps maintain cleaner transmit behavior. The RX antenna input is useful for low-band DX work. The spectrum scope and HDMI output make it easier to monitor band openings and pileups.

A DXer using only a simple vertical or wire antenna may not exploit every improvement. But an operator with multiple antennas, receive loops or noise problems will benefit more.

The radio also remains approachable. This matters. A DX radio that is theoretically powerful but slow to operate can be frustrating. One of Icom’s strengths is that many operators find the interface intuitive.

The MK2 keeps that advantage.

IC-7300MK2 for portable and field operation

The IC-7300MK2 is not a tiny QRP field radio, but it is compact enough for portable and temporary stations. Its improved current draw and lower heat generation help in battery-powered or semi-portable scenarios.

For field days, expeditions, emergency communication exercises or temporary contest setups, the radio offers a strong balance of power, display, computer integration and operating comfort.

However, operators doing backpack QRP operation will still prefer smaller radios. The IC-7300MK2 is better understood as a transportable 100 W base transceiver, not an ultralight portable rig.

It is well suited for car-based portable operation, holiday stations, temporary antennas and field-day style setups.

Early user opinions

Early user feedback generally suggests that the IC-7300MK2 feels like a better IC-7300 rather than a completely different radio. That is probably exactly what Icom intended.

Operators who liked the original tend to appreciate the MK2’s familiar interface. Positive comments often focus on lower heat, quieter behavior, easier remote operation, better screen clarity, the CW decoder and modern connectivity.

This pattern is important. The MK2 does not seem to be winning attention only because of lab numbers. It is winning attention because it keeps the original IC-7300’s usability while fixing things many users wanted updated.

That is a strong position.

Price and availability after launch

The IC-7300MK2 is now moving from announcement excitement into real purchasing decisions. European and UK price information has become clearer, and availability depends on market, distributor, retailer stock and local tax conditions.

This matters because the original IC-7300 may still be available at discounted prices in some markets. The IC-7300MK2 is clearly the more modern radio, but the best value depends on the actual street price. If the original IC-7300 is heavily discounted, it remains attractive. If the MK2 is only moderately more expensive, it becomes the better long-term buy.

Is the IC-7300MK2 future-proof?

No radio is truly future-proof, but the IC-7300MK2 is much better prepared for modern station environments than the original IC-7300.

USB-C, Ethernet and HDMI are not just fashionable connectors. They make the radio easier to integrate with current computers, displays and remote-operation workflows. The RX antenna input gives the radio more serious station flexibility. The improved receiver and transmit performance help extend its useful life in crowded-band operation.

The SDR architecture also makes firmware updates possible, although operators should not buy any radio based only on hoped-for future features. Buy it for what it does now.

As it stands, the MK2 looks like a radio that can remain relevant for many years, especially for operators who want a compact, modern, mid-range HF station.

What is not improved enough?

The IC-7300MK2 is strong, but it is not perfect.

It still has a relatively compact display by modern standards, even though HDMI helps. It does not provide a true dual-receiver architecture like more expensive radios. It is not a flagship contest radio. It may not outperform the strongest competitors in every receiver-performance category. Some operators may still prefer the Yaesu FT-DX10 or Kenwood TS-890 depending on operating priorities.

There is also the question of price. If the MK2 is too close in price to higher-class radios in a given market, buyers may start comparing upward. If it is priced too far above discounted IC-7300 stock, budget buyers may choose the older model.

The radio’s success will depend not only on features, but on street price.

Who should buy the IC-7300MK2?

The IC-7300MK2 is a strong choice for operators who want a modern, compact, easy-to-use HF/50 MHz SDR transceiver with serious performance and current-generation connectivity.

It is especially suitable for:

• new HF operators who want a radio they will not outgrow quickly,
• IC-7300 fans who want a more modern version,
• FT8 and digital-mode users,
• DXers who use receive antennas,
• contesters who want good performance without flagship pricing,
• operators who want HDMI output,
• operators who want Ethernet remote operation,
• European hams interested in 70 MHz,
• field-day and transportable station users.

For a new buyer, the MK2 is easier to recommend than the original IC-7300 if the price difference is reasonable.

Who should keep the original IC-7300?

Existing IC-7300 owners should not feel forced to upgrade. The original IC-7300 remains one of the most capable and influential HF radios ever sold in its class.

You can probably keep the original IC-7300 if:

• you mainly operate casual SSB,
• you mostly use FT8 or FT4 at home,
• you do not use receive antennas,
• you do not need HDMI output,
• you do not need Ethernet remote operation,
• you are satisfied with the existing USB-B interface,
• you are not regularly fighting crowded contest-band conditions,
• you prefer to spend money on antennas instead.

For many stations, a better antenna system will improve results more than replacing an IC-7300 with an IC-7300MK2.

That is an important point. The MK2 is better, but antennas still matter more than radios in many real-world situations.

IC-7300MK2 as a new buyer’s radio

As a new buyer’s radio, the IC-7300MK2 is very compelling. It offers modern SDR performance, strong usability, good digital-mode support and interfaces that fit current shack expectations.

It is also less intimidating than many more complex radios. The IC-7300 family’s operating logic remains one of its strongest assets. A good radio should not require constant manual reading just to perform basic functions.

For a first serious HF radio, the MK2 is expensive compared with entry-level options, but it is not excessive compared with the cost of buying a cheaper radio and upgrading soon after. It can serve as a long-term main station radio for many operators.

IC-7300MK2 as an upgrade radio

As an upgrade radio, the IC-7300MK2 is more situational. If the upgrade is from an older analog or early DSP transceiver, the MK2 will feel like a major leap. The spectrum scope, SDR filtering, USB-C, Ethernet and receiver performance will be immediately useful.

If the upgrade is from an original IC-7300, the difference is more evolutionary. It is clearly improved, but not transformational for every operating style.

The upgrade is strongest for operators who already know exactly which original IC-7300 limitations affect them. If you often thought, “I wish this radio had HDMI, Ethernet, a receive antenna input and slightly better crowded-band behavior,” the MK2 is the answer.

If you never felt limited by the original IC-7300, upgrading may be unnecessary.

Practical buying advice

Before buying the IC-7300MK2, ask five questions:

1. Do I need better crowded-band performance than the original IC-7300?
2. Do I need HDMI output?
3. Do I need Ethernet remote operation?
4. Do I use or plan to use a separate receive antenna?
5. Is the price difference versus the original IC-7300 reasonable in my market?

If the answer to several of these questions is yes, the MK2 makes sense.

If the answer is no, consider whether a discounted IC-7300, Yaesu FT-710 or Yaesu FT-DX10 is a better fit.

The best radio is not always the newest radio. It is the radio that best matches the station, antennas, operating style and budget.

Internal linking suggestions

This article should link naturally to related ham radio and SDR content. Good internal link anchors would be:

• RF direct sampling SDR architecture
• Yaesu FT-DX10 vs Icom IC-7300
• FT8 and digital mode setup
• best HF transceivers for beginners
• using receive antennas for low-band DX
• 70 MHz amateur radio band
• SDR transceivers explained

If there is an older IC-7300 article on the site, it should link back to this updated IC-7300MK2 review using an anchor such as:

Icom IC-7300MK2 review and upgrade comparison

This helps Google understand the relationship between the original IC-7300 and the MK2 content.

The Icom IC-7300MK2 is not another 2016-style revolution. The original IC-7300 already delivered that moment. The MK2 is better understood as a careful and important modernization of a proven concept.

It improves receiver performance, transmit phase noise, connectivity, remote-operation options, receive antenna flexibility and station integration. HDMI, USB-C, Ethernet and the dedicated RX antenna input are not minor details; they address real limitations that became more visible as operating habits changed.

For new buyers, the IC-7300MK2 is one of the strongest mid-range HF SDR transceivers available. For existing IC-7300 owners, the decision is more personal. If you need the new interfaces and improved crowded-band behavior, the upgrade is reasonable. If your current IC-7300 already does everything you need, keeping it remains a perfectly rational choice.

The IC-7300MK2 is not a replacement for good antennas, good operating practice or a high-end contest station. But as a compact, modern, capable and easy-to-use SDR transceiver, it is a strong successor to one of the most successful amateur radios ever made.

---

Image(s) used in this article are either AI-generated or sourced from royalty-free platforms like Pixabay or Pexels.

This article may contain affiliate links. If you purchase through these links, we may earn a commission at no extra cost to you.
