The Balun Core Loss and Ferrite Flux Density Calculator helps amateur radio operators and antenna builders estimate ferrite core stress in baluns, ununs, impedance transformers and common-mode chokes. By entering frequency, RF power, ferrite mix, core size, turns, duty cycle, SWR and transformation ratio, the calculator provides practical estimates for choke reactance, RF voltage, RF current, flux density and thermal risk.

Ferrite cores are commonly used in 1:1 current baluns, 4:1 baluns, 9:1 ununs, 49:1 EFHW transformers and HF common-mode chokes. Choosing the wrong ferrite material, using too many turns, applying high power or running high duty-cycle modes such as FT8, RTTY or FM can cause heating and poor performance.

Use this calculator to compare Mix 31, Mix 43, Mix 52, Mix 61 and Mix 77 ferrites, evaluate stacked toroid cores, and check whether an FT240-31 or FT240-43 core may be suitable for your ham radio antenna system. The results are engineering estimates only, so always test your balun, unun or choke at low power first and monitor core temperature.

Understanding Balun Core Loss, Ferrite Flux Density and RF Power Handling

Ferrite cores are small components, but in many amateur radio antenna systems they do a very important job. A ferrite toroid can be used in a 1:1 current balun, a common-mode choke, a 4:1 balun, a 9:1 unun, a 49:1 end-fed half-wave transformer or many other RF matching and suppression circuits. When the correct ferrite material and core size are chosen, the result can be a cleaner antenna system, less feedline radiation, reduced RF in the shack and better overall station performance.

However, ferrite cores are not magic parts. They have limits. If the core is too small, the wrong ferrite mix is selected, too much RF power is applied, the duty cycle is too high, or the antenna impedance is very different from what the transformer expects, the ferrite may become hot. In more severe cases, the core may become inefficient, nonlinear, unstable or permanently damaged.

This is why a balun core loss and ferrite flux density calculator is useful. It gives radio amateurs a practical way to estimate whether a chosen ferrite core, winding and power level are likely to be reasonable before building the final balun, unun or choke.

What Is a Ferrite Core in Amateur Radio?

A ferrite core is a magnetic material used to increase inductance, guide magnetic flux and add impedance to unwanted RF currents. In ham radio, ferrite cores are commonly used for two main purposes.

The first purpose is impedance transformation. This is the case in devices such as 4:1 baluns, 9:1 ununs, 49:1 EFHW transformers and other matching transformers. These devices help transform one impedance level into another so the transmitter, feedline or antenna tuner sees a more suitable load.

The second purpose is common-mode current suppression. This is the job of a common-mode choke or 1:1 current balun. A good choke adds high impedance to unwanted current flowing on the outside of the coax shield, while allowing the normal differential RF current inside the feedline to pass.

Both applications use ferrite, but they do not stress the core in exactly the same way. A common-mode choke is often designed to add loss to unwanted common-mode current. A transformer-style unun, on the other hand, should transfer useful RF power efficiently while avoiding excessive loss and heating.

Why Ferrite Core Heating Happens

Ferrite core heating happens when some of the RF energy is converted into heat inside the magnetic material. Some heating is normal, especially when ferrite is used for suppression. But excessive heating is a sign that the core is being pushed beyond a comfortable operating range.

Heating can be caused by several factors:

High RF power increases voltage and current stress.

High duty-cycle modes such as FT8, RTTY, AM, FM and continuous carrier operation create more average heating than normal SSB voice operation.

Incorrect ferrite mix can create excessive loss at the operating frequency.

Too few turns may produce insufficient impedance in a choke.

Too many turns may create excessive stray capacitance, especially on the higher HF bands.

High SWR or an unexpected antenna impedance can increase voltage and current inside the balun or unun.

Small cores have less thermal mass and less effective magnetic area than larger toroids.

Poor airflow or a sealed plastic box can trap heat around the ferrite.

This is why a balun that works well at 100 watts SSB may become hot when used at 100 watts FT8. The peak power may be the same, but the average thermal load is very different.

Ferrite Mix 31, Mix 43, Mix 52, Mix 61 and Mix 77

One of the most common questions in amateur radio antenna building is: which ferrite mix should I use?

There is no single best ferrite material for every RF application. Different mixes perform better at different frequency ranges and in different circuit types.

Mix 31 is very popular for lower HF common-mode chokes. It is often a strong choice for 160 meters, 80 meters and 40 meters. It can also be useful higher in the HF range depending on the winding and application. Many radio amateurs choose Mix 31 when they want strong choking impedance on the lower HF bands.

Mix 43 is a common general-purpose HF ferrite. It is widely used for baluns, ununs and chokes. It is often seen in FT240-43 toroids for 1:1 current baluns, 4:1 baluns, 9:1 ununs and 49:1 EFHW transformers. Mix 43 is useful across much of the HF spectrum, but it is not always the best choice for every band or every high-power application.

Mix 52 is often used at upper HF and lower VHF frequencies. It may be useful where Mix 43 becomes less ideal or where lower loss is desired at higher frequencies.

Mix 61 is a lower-loss material often used in transformer-style applications at higher HF and VHF frequencies. It is not usually the first choice for a lossy common-mode choke on lower HF, but it can be valuable in RF transformers where efficiency is important.

Mix 77 is typically more useful at lower frequencies. It may be selected for low-frequency applications, receiving antennas or special cases where high permeability at lower frequencies is useful.

The calculator helps compare these materials in a simplified way. It does not replace manufacturer data, but it gives a practical starting point for choosing the right ferrite mix.

FT240-31 vs FT240-43: Why These Cores Are So Popular

The FT240-size toroid is one of the most common ferrite core sizes used by radio amateurs. It is large enough for many HF power levels, easy to wind, widely available and suitable for many balun and choke designs.

Two of the most popular versions are FT240-31 and FT240-43.

An FT240-31 core is often preferred for lower HF common-mode choke applications. If the goal is to suppress feedline current on 160 meters, 80 meters or 40 meters, Mix 31 is often a very attractive choice. It can provide strong choking performance with a suitable number of turns.

An FT240-43 core is often used for general HF baluns and ununs. It is common in 1:1 current baluns, 4:1 transformers, 9:1 ununs and 49:1 EFHW transformers. It is not automatically the best choice for every situation, but it is widely used because it works reasonably well in many HF antenna systems.

The important point is that the core type alone does not determine success. The number of turns, winding style, RF power, duty cycle, SWR and antenna impedance are just as important.

Why Stacking Ferrite Cores Can Help

Stacking two or more identical ferrite toroids is a common way to improve power handling and reduce stress. When cores are stacked, the effective magnetic path and core volume increase. In practical terms, this can reduce flux density and spread heating over more material.

For example, a single FT240-43 core may work well at moderate power in some applications. But if the same design is used at higher power, with digital modes, or with a high transformation ratio, stacking two cores may be much safer. Three or more cores may be used in more demanding high-power designs.

Stacking cores does not make a balun indestructible. It does not fix a bad antenna impedance, poor winding, insufficient insulation or severe mismatch. But it can provide a useful safety margin, especially in high-duty-cycle operation.

The calculator includes stacked-core estimation so users can compare one core, two cores or more and see how effective AL, effective core area and estimated stress change.

Why Number of Turns Matters

The number of turns through a ferrite toroid has a major effect on inductance and reactance. In simple terms, more turns usually means more inductance. Since inductance increases with the square of the number of turns, adding turns can dramatically increase impedance.

For a common-mode choke, more impedance is usually desirable. A choke with only a few hundred ohms of impedance may not suppress common-mode current very well. A choke with several thousand ohms of impedance is often much more effective.

However, more turns are not always better. At higher frequencies, too many turns can create stray capacitance between windings. This can reduce choke performance, create unwanted resonances and increase voltage stress. A winding that works well on 80 meters may not be ideal on 10 meters.

This is why good choke design is a balance. The goal is not simply to use the maximum number of turns. The goal is to use the right number of turns for the ferrite mix, core size, frequency range and application.

Common-Mode Choke vs Balun vs Unun

The words balun, unun and choke are sometimes used interchangeably, but they are not the same thing.

A balun connects a balanced system to an unbalanced system. A classic example is a dipole antenna connected to coaxial cable. A 1:1 current balun at the feedpoint of a dipole helps keep the currents balanced and reduces RF current on the outside of the coax shield.

An unun connects an unbalanced system to another unbalanced system. A common example is a 9:1 unun for a random wire antenna or a 49:1 transformer for an end-fed half-wave antenna. These devices transform impedance but do not create a truly balanced antenna system.

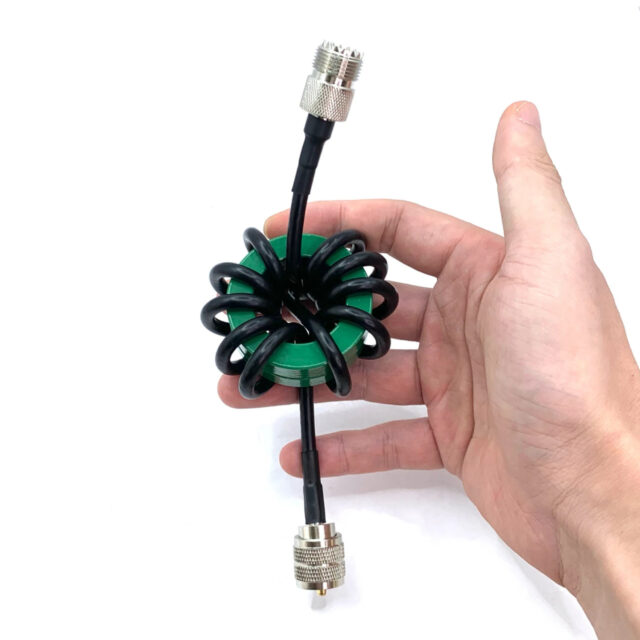

A common-mode choke suppresses unwanted current flowing on the outside of a coaxial cable. It may be built as a coil of coax through ferrite cores or as multiple turns through a toroid. A 1:1 current balun often behaves as a common-mode choke.

The calculator supports all of these general use cases because ferrite stress can occur in each one. But the interpretation is different. In a choke, high impedance is usually the goal. In a transformer, efficient power transfer and safe voltage handling are also critical.

Why Transformation Ratio Increases Voltage Stress

A 1:1 current balun does not intentionally transform impedance. If the transmitter sees 50 ohms and power is 100 watts, the RF voltage and current are relatively easy to estimate.

A high-ratio unun is different. A 49:1 transformer used for an end-fed half-wave antenna may transform 50 ohms to roughly 2450 ohms. At the same power level, the high-impedance side can have much higher voltage.

This is why high-ratio transformers need careful construction. The winding insulation, spacing, core size and ferrite material all become important. A 49:1 or 64:1 transformer may work well at QRP or moderate SSB power, but high power and digital modes can create serious heating and voltage stress.

The calculator estimates the transformed load and high-side voltage so the user can see how much stress may appear in a high-ratio unun.

Duty Cycle: Why FT8 Can Be Harder Than SSB

Many radio amateurs think only in terms of peak power. For example, they may say that a balun is rated for 100 watts. But 100 watts SSB is very different from 100 watts FT8, RTTY or FM.

SSB voice has a relatively low average power because speech varies constantly. The transmitter may reach high peak envelope power, but the average heating over time is much lower.

Digital modes can be much harder on ferrite cores because they may transmit at a high duty cycle for longer periods. FT8, RTTY, AM, FM and other continuous or near-continuous modes can create much more heat in the same ferrite core.

This is why a balun or unun that remains cool during casual SSB operation may become warm or hot during digital operation. The calculator includes duty cycle because thermal stress is strongly related to average power, not just peak power.

SWR and Real Antenna Impedance

A perfect 50-ohm load is easy to calculate. Real antennas are not always so convenient. End-fed wires, random wires, multiband antennas, off-center-fed dipoles and portable antennas can present very different impedances depending on frequency, height, ground conditions and surroundings.

High SWR can increase voltage and current stress in the feed system. It can also make a balun or unun operate outside the conditions it was designed for. A transformer that works well with a suitable antenna impedance may become inefficient or hot when the antenna impedance is very different.

This is especially important when using antenna tuners. A tuner may make the transmitter happy, but it does not always reduce stress at the balun or unun. The ferrite component may still see high voltage, high current or excessive common-mode current.

The calculator includes SWR as a practical risk factor. It is not a complete transmission-line model, but it helps remind users that mismatch matters.

What Is Ferrite Flux Density?

Flux density describes how much magnetic flux is present in the ferrite material. In simplified RF transformer analysis, high voltage, low frequency, too few turns and small core area can all increase flux density.

If flux density becomes too high, the ferrite can become inefficient or nonlinear. In severe cases, the core may approach saturation. At RF frequencies, heating and loss often become the more practical concern before classic low-frequency transformer saturation is reached, but flux density is still a useful stress indicator.

The calculator estimates flux density using input voltage, frequency, number of turns and effective core area. This gives a practical warning sign. A low value suggests the core is not being heavily magnetically stressed. A higher value suggests that the design should be treated with more caution.

Why Core Loss Is Difficult to Calculate Exactly

Exact ferrite core loss is not simple. It depends on manufacturer-specific material data, complex permeability, temperature, frequency, flux density, waveform, winding geometry and cooling. Two cores with the same general mix number may not behave identically if they come from different manufacturers.

In professional RF design, engineers may use detailed datasheets, impedance measurements, network analyzers, thermal testing and empirical design rules. In amateur radio, many builders use proven designs, careful testing and conservative safety margins.

This calculator is designed as a practical estimator. It does not claim to provide a guaranteed manufacturer rating. Instead, it helps identify designs that are probably reasonable, designs that are borderline and designs that deserve caution.

How to Use the Calculator Results

The calculator provides several useful outputs.

Estimated inductance shows the approximate inductance created by the selected AL value, number of turns and stacked cores.

Inductive reactance shows the approximate impedance produced at the selected frequency. For common-mode chokes, higher reactance generally means better choking performance.

RF voltage and RF current help estimate the electrical stress in the system.

Transformed load estimate shows the approximate high-impedance side when using a ratio such as 4:1, 9:1 or 49:1.

High-side voltage estimate is especially useful for ununs and EFHW transformers, where voltage stress can become significant.

Average power by duty cycle helps show why digital modes can be more demanding than SSB.

Estimated flux density provides a useful indication of magnetic core stress.

Thermal risk score combines several factors into an easy-to-read practical warning level.

No single number should be used alone. The best approach is to look at the complete picture: power, frequency, mix, core size, turns, duty cycle, SWR, ratio and winding style.

Practical Tips for Building a Better Balun or Choke

Use a core size that provides enough margin. For HF transmitting applications, FT240-size cores are often more forgiving than small toroids.

Choose the ferrite mix based on frequency and application. Mix 31 is often strong for lower HF choking, while Mix 43 is widely used for general HF applications.

Avoid assuming that more turns are always better. More turns can improve low-frequency choking but may reduce high-frequency performance due to stray capacitance.

For high power, consider stacking cores. Two cores can provide a useful safety margin compared with a single core.

Use good insulation and spacing for high-ratio ununs. A 49:1 or 64:1 transformer can develop high RF voltage.

Be careful with digital modes. FT8, RTTY and FM can heat ferrites much more than casual SSB.

Test at low power first. Increase power gradually and check the temperature of the core.

Do not fully seal a high-power balun in a small box without considering heat. Airflow and thermal mass matter.

Use a current meter, RF ammeter or common-mode current probe if available. Measuring current is better than guessing.

When in doubt, build conservatively. Ferrite cores are cheaper than damaged equipment, poor signal quality or RF feedback problems.

Signs That a Ferrite Balun or Unun Is Overstressed

A ferrite component may be overstressed if it becomes too hot to touch after normal operation. Warm is not always a problem, but rapid heating is a warning sign.

Other warning signs include unstable SWR, power foldback from the transmitter, RF in the shack, distorted transmitted audio, poor efficiency, arcing, melted insulation, a burning smell or changing performance during a transmission.

In digital modes, temperature should be monitored carefully. A balun that is only slightly warm after one short transmission may continue heating during repeated operating cycles.

If a core becomes very hot, reduce power immediately and inspect the design. Possible fixes include using a larger core, stacking multiple cores, changing ferrite mix, reducing turns at high frequency, improving spacing, reducing duty cycle or improving the antenna match.

Why Common-Mode Current Matters

Common-mode current occurs when RF flows on the outside of a coax shield or along unintended conductors. This can turn the feedline into part of the antenna. Sometimes the result is only a slightly distorted radiation pattern. In other cases, it causes RF feedback, noisy receive performance, interference to nearby electronics or unpredictable tuning.

A good common-mode choke can reduce these problems by adding high impedance to the unwanted current path. This is one reason 1:1 current baluns and ferrite chokes are so valuable in HF stations.

Common-mode current can appear with dipoles, verticals, off-center-fed antennas, end-fed antennas and portable wire antennas. It is not limited to one antenna type. Even a well-designed antenna may benefit from a choke at the feedpoint, at the shack entry point or both.

Balun Power Ratings Can Be Misleading

Commercial baluns and ununs are often advertised with power ratings, but those ratings do not always tell the whole story. A rating may assume SSB operation, a matched load, good airflow and a specific frequency range. The same device may not handle the same power with FT8, high SWR or an unsuitable antenna impedance.

For homemade baluns, power handling is even more dependent on construction. Two builders may use the same ferrite core but get different results because of winding spacing, wire type, insulation, enclosure, connector quality and antenna load.

This is why calculators and rules of thumb should be combined with real testing. A conservative estimate is a starting point, not a final guarantee.

Example: 100 W SSB on an FT240-43 Core

A typical 100 watt SSB station using an FT240-43 core may operate safely in many HF balun or choke designs. If the duty cycle is low, the antenna load is reasonable and the winding is appropriate, heating may be modest.

However, the same core used in a high-ratio unun with a poor antenna match may experience higher voltage stress. If the operator switches from casual SSB to long FT8 transmissions, the average thermal load increases. In that case, the design may need more margin.

This is why the calculator asks for mode, duty cycle, transformation ratio and SWR. The core alone does not determine the result.

Example: 49:1 EFHW Transformer

A 49:1 transformer is popular for end-fed half-wave antennas. It transforms a high antenna impedance down toward 50 ohms. This can work very well when the antenna length, installation and counterpoise conditions are suitable.

But 49:1 transformers can create high RF voltage on the high-impedance side. At higher power, insulation, winding layout and core heating become important. Digital operation can be especially demanding.

For a QRP EFHW, a small core may be enough. For 100 watts or more, many builders prefer larger cores or stacked FT240 cores. The calculator helps show why: as the ratio increases, voltage stress increases, and the estimated risk may rise.

Example: Common-Mode Choke for a Dipole

A center-fed dipole connected to coax often benefits from a 1:1 current balun or common-mode choke at the feedpoint. The goal is not to transform impedance but to reduce current flowing on the outside of the coax.

For this application, choke impedance is one of the most important numbers. A weak choke may not do much. A strong choke with several thousand ohms of impedance can significantly reduce common-mode current.

The right ferrite mix and number of turns depend on the bands of interest. A choke optimized for 80 meters may not be optimal for 10 meters. A multiband choke may require compromise, multiple chokes or a carefully chosen design.

Limitations of the Calculator

This calculator is designed for practical amateur radio estimation. It is not a full electromagnetic simulation and it does not replace laboratory measurement.

The calculator does not know the exact manufacturer of the core, the precise complex permeability, the true antenna impedance, the actual common-mode current, the enclosure temperature or the winding parasitic capacitance. It also cannot predict every possible resonance or construction issue.

The results should therefore be used as guidance. If the calculator shows high risk, the design deserves caution. If it shows low risk, the design is probably more reasonable, but testing is still necessary.

Safe Testing Procedure

When testing a new balun, unun or choke, start with low power. Transmit briefly and check the core temperature. Increase power gradually. Test on the bands you plan to use. If possible, test with the actual antenna rather than a dummy load only, because real antenna impedance may be very different.

For digital modes, test with the expected duty cycle. A short SSB test does not prove that a transformer will survive long FT8 operation.

After operation, open the enclosure if possible and inspect the winding. Look for softened insulation, discoloration, arcing marks or a hot smell. If anything looks suspicious, reduce power or redesign the component.

A well-designed ferrite balun, unun or common-mode choke can make an amateur radio station cleaner, quieter and more reliable. It can reduce RF feedback, improve antenna current balance, suppress feedline radiation and help matching networks work more predictably.

But ferrite parts must be chosen and used carefully. Core size, ferrite mix, number of turns, stacking, winding style, RF power, duty cycle, SWR and transformation ratio all matter. A design that works perfectly at low power may fail at high power. A device that works for SSB may run hot during digital modes. A core that works well on lower HF may not be ideal on upper HF.

The Balun Core Loss and Ferrite Flux Density Calculator gives radio amateurs a practical way to compare these variables before building. It helps turn guesswork into a more informed design process. Use it as a planning tool, combine it with proven RF construction practices, and always confirm the final design with real-world testing.

---
